多模单通道光纤耦合激光器
主要特点
- 输出波长: 473 nm
- 多模 FC/PC 光纤接口
- 50 mW 输出功率
- 低噪音,稳定输出功率
Specifications
|
Item #
|

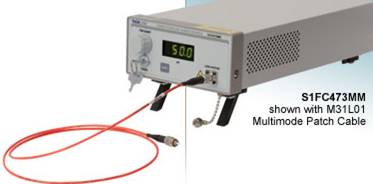

S1FC473MM
|
Wavelength
|
473 nm
|
Max Output Power*
|
50 mW
|
Stability
|
15 min: ±0.05 dB, 24 hr: 0.1 dB
(After 1 hr Warm-Up at 25 ± 10 °C Ambient)
|
Display Accuracy
|
±10 %
|
Setpoint Resolution
|
0.1 mW
|
Adjustment Range
|
~0 mW to Full Power
|
AC Input
|
115 / 230 VAC (Switch Selectable) 50 - 60 Hz
|
Modulation Input
|
0 - 5 V = 0 - Full Power, DC or Sine Wave Input Only
|
Modulation Bandwidth
|
5 kHz Full Depth of Modulation
30 kHz Small Signal Modulation
|
Fiber
|
|
Environmental
|
Operating Temperature
|
15 to 35 °C
|
Storage Temperature
|
0 to 50 °C
|
*Output power ranges from 0 - 50 mW. Due to variations between laser diodes, maximum output power may be higher.
|
|
